THE TOP FIVE BODY FILLER MISTAKES
Despite significant advancements in repair materials, tooling and vehicle design, improper application of body filler continues to undermine repair integrity. These failures are rarely attributable to the filler itself; instead, they stem from practises that disregard fundamental principles of material science and manufacturer specifications.
Modern body fillers are engineered cosmetic surfacing products with defined performance limits established through rigorous testing. Manufacturer documentation specifies acceptable substrates, mixing ratios, application thickness and cure behaviour. Misuse occurs when these limitations are ignored or misunderstood. Today’s collision repair industry offers many filler options — lightweight polyester fillers, glazing putties, fibreglass-reinforced fillers, metal-filled products, sprayable fillers and specialty formulations. Each is designed for specific applications, such as skim coating, weld seam reinforcement or large-area levelling. Selecting the correct filler is the first step toward a durable repair, but even the right product will fail if applied incorrectly.
The following are five common mistakes associated with body filler use, examined through the lens of material behaviour and product requirements.
Using body filler to correct panel shape
One of the most frequent misapplications involves using body filler to compensate for unresolved substrate deformation. Excessive filler is often applied to mask incomplete straightening or structural distortion.
Polyester body filler has limited tensile strength, low elongation and no structural capacity. When applied beyond recommended thickness, the material becomes vulnerable to cracking, shrink-back and adhesion loss caused by thermal cycling, vibration and environmental exposure. These failures result from internal stress and differential expansion between filler and substrate.
Manufacturers typically limit application thickness to approximately 1/8 inch (3 mm) in localized areas. Damage exceeding this threshold must be corrected through proper metal repair or panel replacement before cosmetic surfacing begins. Body filler is intended to refine surface contour – not replace substrate restoration.
Applying filler over improper or contaminated substrates
Body filler adhesion relies entirely on mechanical bonding. Unlike coatings that form chemical bonds, polyester fillers depend on physical keying into a properly prepared surface. Failures occur when filler is applied over incompatible or contaminated substrates such as unsanded E-coat, glossy primer, acid-etched metal, corrosion or panels contaminated with silicone, oil or solvent residue.
Surface condition directly affects bond integrity. If the substrate has poor surface energy or trapped contaminants, adhesion is compromised, leading to delamination and moisture intrusion. Application over acid-etched metal is especially problematic because residual acid can interfere with peroxide-initiated polymerization at the filler-to-metal interface.
Proper substrate preparation requires surfaces to be clean, dry, corrosion-free and abraded to the scratch profile specified by the filler manufacturer. Featheredge surrounding paint films with progressive grit steps (e.g., 220 – 320 – 400) to create a smooth transition and mechanical key. Some filler manufacturers permit application over properly prepared epoxy primers, but this approval is product-specific and dependent on primer cure state and surface preparation.
Adhesion failures almost always originate at the substrate — not in the filler itself.
Incorrect hardener ratios and improper mixing technique
Altering hardener ratios to adjust working or cure time remains a common practice, despite clear warnings from manufacturers. Polyester fillers depend on controlled exothermic polymerisation, a chemical reaction that releases heat as the filler cures. This heat drives crosslink formation, which determines the filler’s strength and dimensional stability.
Deviating from specified catalyst ratios disrupts reaction kinetics and introduces long-term performance risks:
• Excess hardener accelerates the reaction, increasing peak cure temperature and producing brittle filler with reduced flexibility and increased solvent sensitivity.
• Insufficient hardener slows or prevents complete polymerisation, resulting in incomplete cure, long-term softness and delayed shrinkage.
Improper mixing compounds these issues. Swirling introduces air, creating internal voids that later appear as pinholes. Incomplete folding leads to uneven catalyst distribution and inconsistent cure. Uniform colour throughout the mixture indicates readiness for even polymerization.
Best practises include checking expiration dates, using the same brand of filler and hardener, and mixing according to the manufacturer’s technical data sheet (TDS).
Improper application technique and layer control
Applying filler in thick, single applications creates internal stress that remains locked into the repair after hardening. This stress is a primary contributor to future shrink-back and surface distortion.
Overworking filler beyond its open time further damages the internal structure. Once polymer chains begin to form, additional manipulation disrupts cohesion and weakens adhesion at the substrate interface.
Manufacturers specify layering strategies, open time limits and cure windows to ensure dimensional stability. Controlled, incremental application allows heat to dissipate and polymer chains to form uniformly. Apply multiple thin layers rather than one thick coat.
Attempting to shape filler during the gel phase compromises internal strength and long-term durability.

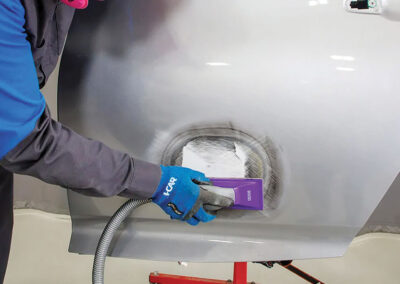

Sanding errors that compromise repair durability
Sanding-related failures often occur when filler is shaped or refined before it has fully cured, when grit progressions are skipped or when edges are over-sanded.
Sanding before complete polymerisation disrupts crosslink formation beneath the surface. While the outer layer may feel hard, the underlying material remains unstable, leading to delayed shrinkage, edge mapping and visible repair outlines after refinishing.
Filler manufacturers establish sanding sequences to balance shape control with surface refinement. Coarse grits are intended for shaping, followed by progressive refinement to remove scratches and stabilize the surface. Skipping steps sacrifices long-term repair integrity for short-term speed.
Final considerations and training resources
Body filler failures are rarely random. They are the predictable result of exceeding material limitations, misunderstanding substrate requirements or disregarding product-specific technical data.
When used strictly within its intended purpose and applied according to the manufacturer’s instructions, body filler performs reliably as a cosmetic refinement material. When misused, it becomes a consistent source of long-term failure.
Understanding the material – not just the process – is the key to durable, repeatable repairs.
Story By: Bud Centre
